Side Bracket Option [BK125CTSBO]

Side Bracket Option [BK125CTSBO]

Our Price: 12,000Yen(tax excluded)

Quantity:
HONDA CT125 HUNTER CUB MOONEYES STYLE

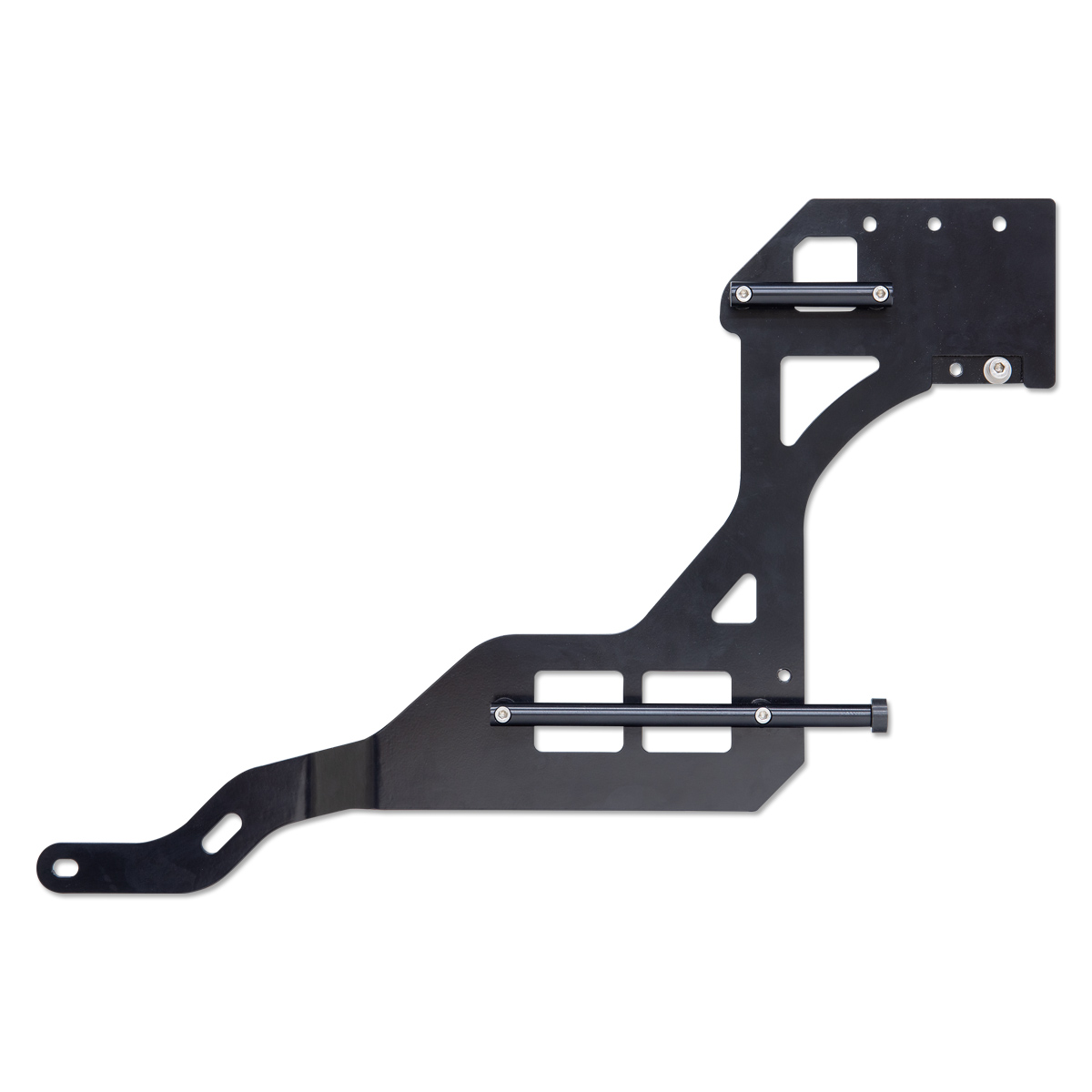

Side Bracket Option

This product is only applicable to the model before December 2022. It cannot be applied to the latest model (after December 2022), and unfortunately, we cannot suggest if it can divert to the latest model. Due to these reasons, we cannot exchange, process or return this product. Please check your model before purchasing the product. If you are not sure, feel free to contact us any time.

After the main bracket is mounted, fix it with the chain cover bolts and the main bracket.

Image 1 Image 2

Remove the bolt of Image 1 & 2, and also remove the original cover.


Image 3


After the Main Bracket is mounted, use the bolt removed on Image 1 to mount the Side Bracket Option.


Image 4
After the Side Bracket Option is mounted, put the bolt removed on image 2 and fix it to the original position.

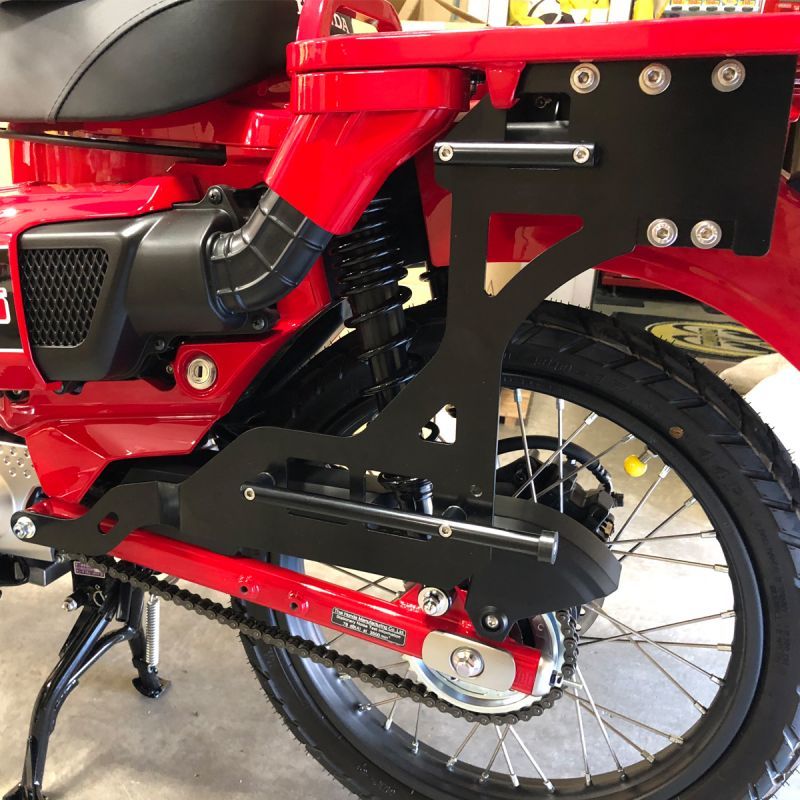

The image above is after Side Bracket is mounted to the CT125.

This bracket will be an important one for installation of
Water Tank with Bracket [BK125CTWT]
Fishing Box [BK125CTFB]

SIZE : About(H) 44cm x (W) 70cm

※For the installation of this Side Bracket you will need
the Main Beacket [BK125CTMB] which is sold separately.



If you have difficulties with installation, please get some help at the professional shop. If you install the parts yourself and damage or any problem occurs, we will not accept any claims for any reason.

This product is only for HONDA CT125 Hunter Cub.
It will take about a month to deliver after your order is confirmed.
All of the parts are bolt-on parts but, if you already made some customize to your motorcycle, you might need to work to install it.

※It is a dress-up parts so, please avoid using it on a public road.

Self-admitted Camping and Motorcycle lover among the MOONEYES STAFF, Oh-Sumiya’a Exciting project “ZOOM into Nature with HONDA CT125” is now available! We will introduce all the HONDA CT125 custom parts that were posted on the MOONEYES Official Instagram. ZQQM into nature with the New Style that MQQNEYES offers!!



For more detail
http://www.mooneyes.co.jp/ct125-2020/
